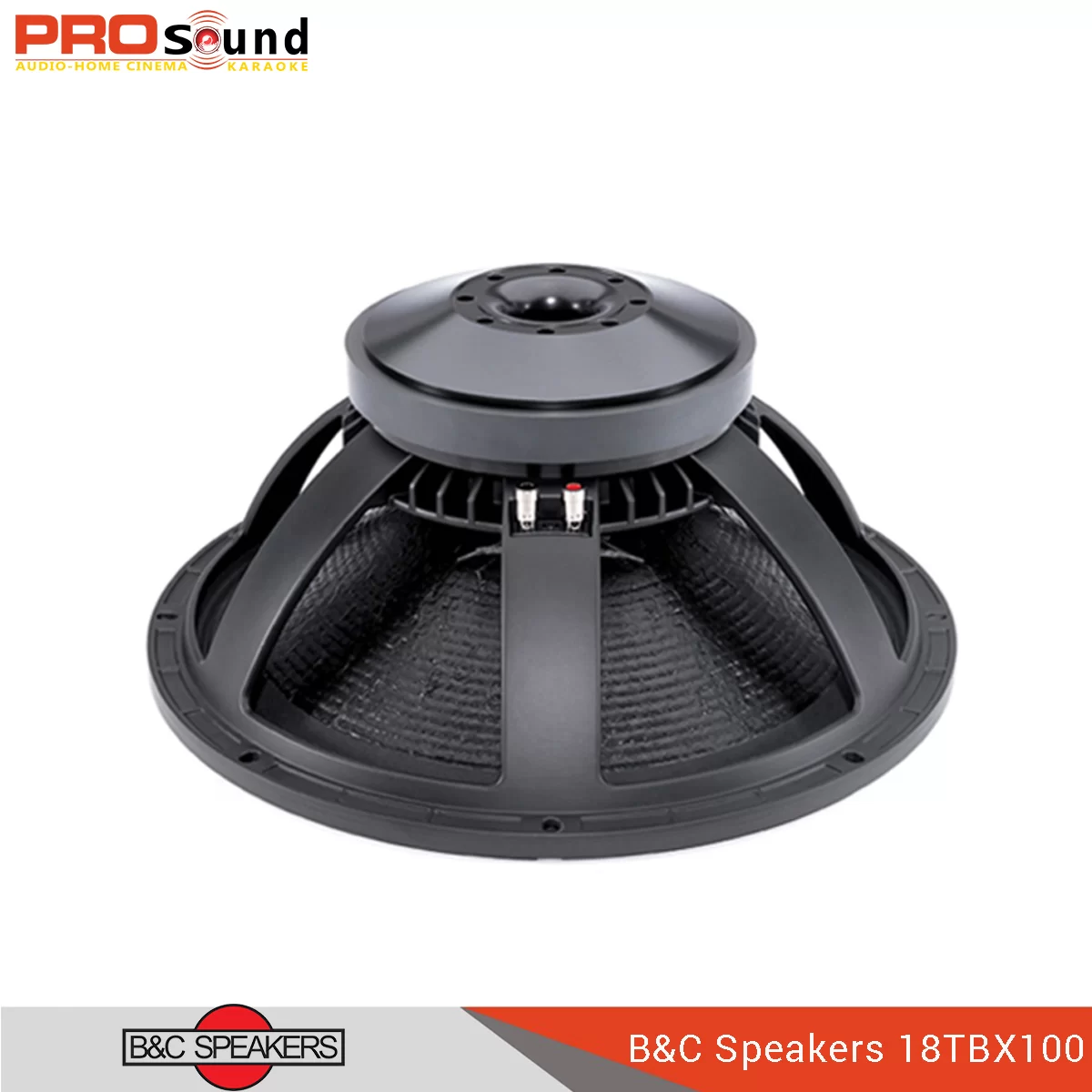

B&C Speaker 18TBX100

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features

2400 W continuous program power capacity
100 mm (4 in) copper voice coil
35 - 1000 Hz response
97 dB sensitivity
Aluminium demodulating ring allows a very low distortion figure
Double silicone spider with optimized compliance
Ventilated voice coil gap for reduced power compression

Specifications
Nominal Diameter: 460 mm (18.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.2 Ω
Nominal Power Handling: 1200 W
Continuous Power Handling: 2400 W
Sensitivity: 97.0 dB
Frequency Range: 35 - 1000 Hz
Voice Coil Diameter: 100 mm (4.0 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 25.0 mm (1.0 in)
Magnetic Gap Depth: 12.0 mm (0.5 in)
Flux Density: 1.1 T

Design
Surround Shape: Triple Roll
Cone Shape: Radial
Magnet Material: Ferrite
Spider: Double Silicone
Pole Design: T-Pole
Woofer Cone Treatment: TWP Waterproof Both Sides
Recommended Enclosure: 200.0 dm3 (7.06 ft3)
Recommended Tuning: 34 Hz

Parameters
Resonance Frequency: 34 Hz
Re: 5.1 Ω
Qes: 0.37
Qms: 7.2
Qts: 0.35
Vas: 212.0 dm3 (7.5 ft3)
Sd: 1210.0 cm2 (187.6 in2)
η₀: 2.2 %
Xmax: 9.0 mm
Xvar: 11.0 mm
Mms: 209.0 g
Bl: 25.5 Txm
Le: 1.6 mH
EBP: 91 Hz

Mounting and Shipping Info
Overall Diameter: 460 mm (18.0 in)
Bolt Circle Diameter: 440 mm (17.3 in)
Baffle Cutout Diameter: 422.0 mm (16.6 in)
Depth: 209 mm (8.2 in)
Flange and Gasket Thickness: 16 mm (0.63 in)
Air Volume Occupied by Driver: 10.5 dm3 (0.37 ft3)
Net Weight: 13.0 kg (28.6 lb)
Shipping Units: 1
Shipping Weight: 14.6 kg (32.19 lb)
Shipping Box: 500x495x275 mm (19.69x19.49x10.83 in)
