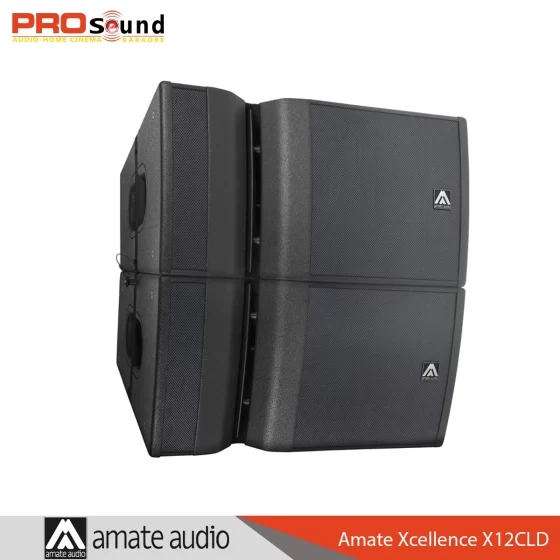

Loa Cluster Array Amate Xcellence X12CLD

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

12” PASSIVE CLUSTER ARRAY SYSTEM X12CLD

The X12CLD is a constant curvature array that combines ultra- compact form with astounding levels of performance. Light-weight, safe and easy to setup and carry, it performs far beyond expectations, thanks to its advanced acoustic design and custom high frequency waveguide.

Thông số kỹ thuật

Power (musical program): 1200 W (LF) + 140 W (HF)

Nominal impedance: 8 Ω (LF) + 8 Ω (HF)

SPL (1W/1m): 99dB (LF) + 109dB (HF)

Maximum SPL (continuous/1m): 130dB (LF) + 130dB (HF)

Frequency response (-10 dB): 60 Hz – 2 kHz (LF) / 800 Hz – 20 kHz (HF)

LF: 12″ neodymium woofer (3.5″ voice coil)

 HF: 2.5″ titanium diaphragm neodymium driver

Directivity (HxV): 100º x 15º

Dimensions (HxWxD): 352 x 640 / 680 (including ball lock pins) x 485 mm

Weight: 29 kg

Finish

Multilayer baltic birch plywood with high resistant black & grey matt

Polyurea® coating

Grille: 1.5 mm steel

Rigging: Stainless-steel integrated rigging bars

Connectors: 1x Speakon NL4 Neutrik® input / 1x Speakon NL4 Neutrik® link
