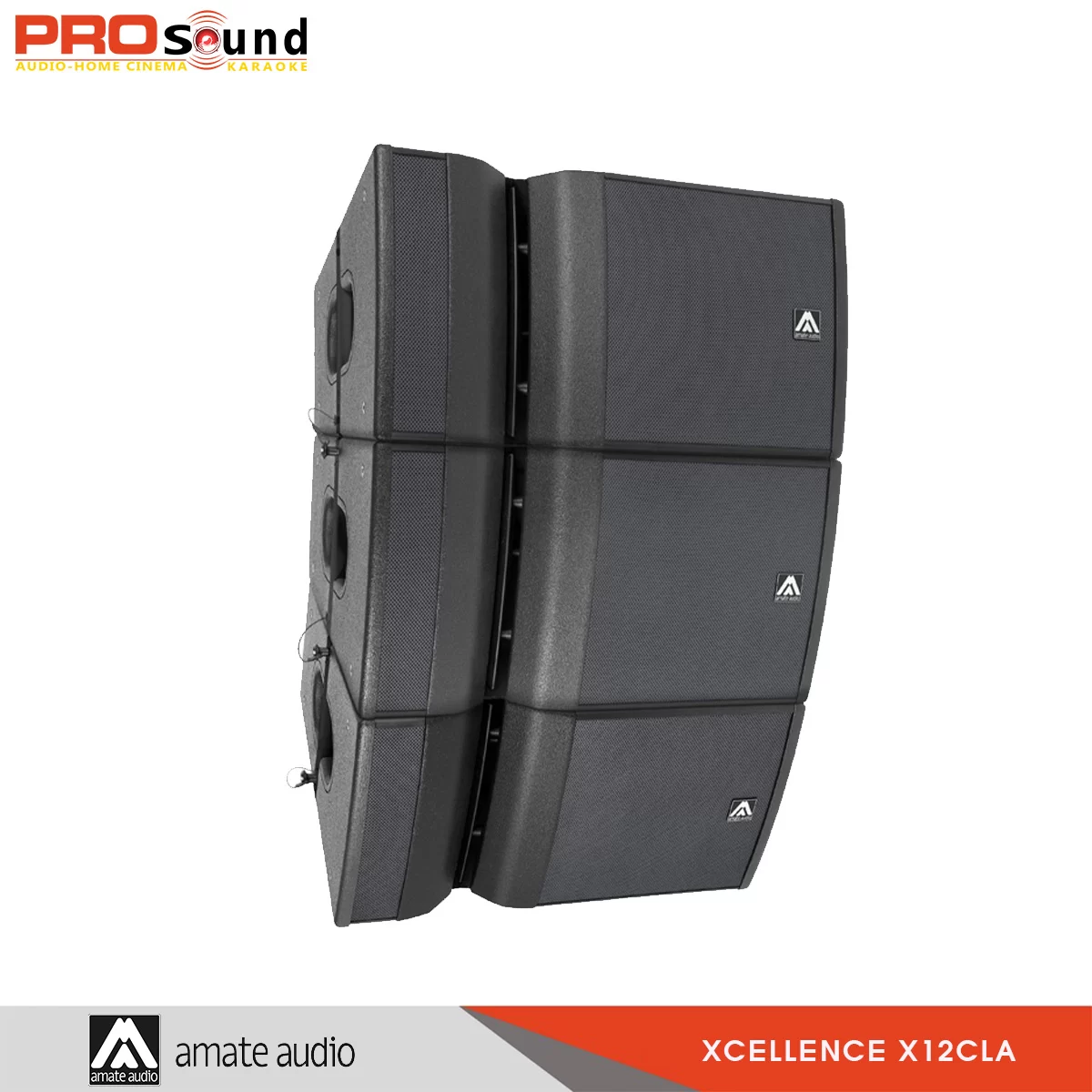

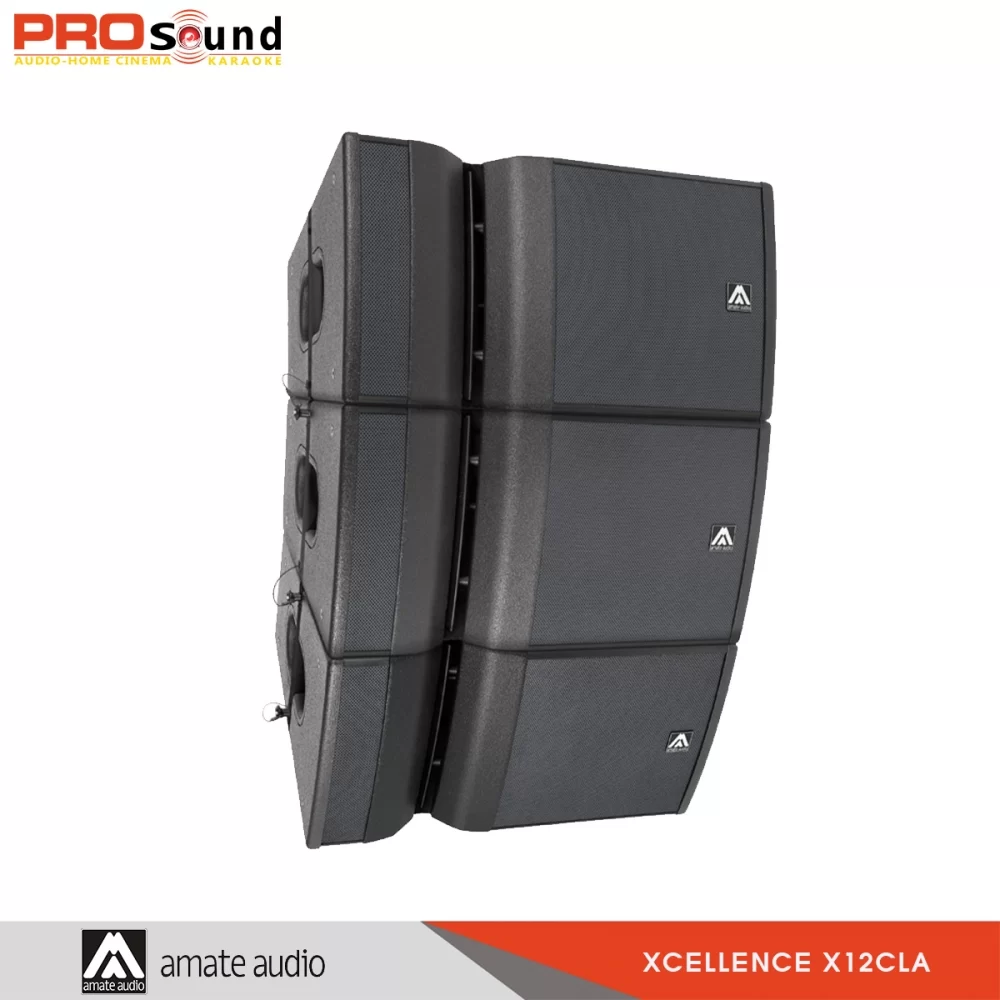

12” active cluster array system
A true compact array. The X12CLA is a constant curvature array that combines ultra- compact form with astounding levels of performance. Light-weight, safe and easy to setup and carry, it performs far beyond expectations, thanks to a custom high frequency waveguide, advanced acoustic design and integrated 1500 W amplification with DSP.
Amplifier (program power): 1000 W (LF) + 500 W (HF) – Class D Bi-amplified
Input Sensitivity: 8 dBu – 1.94 V
Input Impedance: 20 KΩ Balanced
Mains: Universal switch mode Power Supply 85-265 V / 45-65 Hz
Average current draw: 2.1 A (Heavy duty musical program)
SPL (1m): 129 dB continuous, 132 dB peak
Built-in DSP: 48 bit
AD/DA converters: 24 bit – 96 KHz
Presets: Built-in presets to cover the most standard applications + 23 configurable user memories
Frequency response (-10 dB): 58 Hz – 19 kHz
LF-MF: 12″ neodymium woofer (3.5″ voice coil)
HF: 2.5″ titanium diaphragm neodymium driver
Directivity (HxV): 100º x 15º
Dimensions (HxWxD): 352 x 640 / 680 (including ball lock pins) x 485 mm
Weight: 31.5 kg
Finish: Multilayer baltic birch plywood with high resistant black Polyurea® coating
Grille: 1.5 mm steel with grey micro-foam cloth
Rigging: Stainless-steel integrated rigging bars
Connectors
1 x XLR input / 1x XLR link / 1x AC PowerCon® input / 1x AC PowerCon® link / 1x Speakon
NL4FX output (N208) / 1x Speakon NL4MPR input (N208P)
