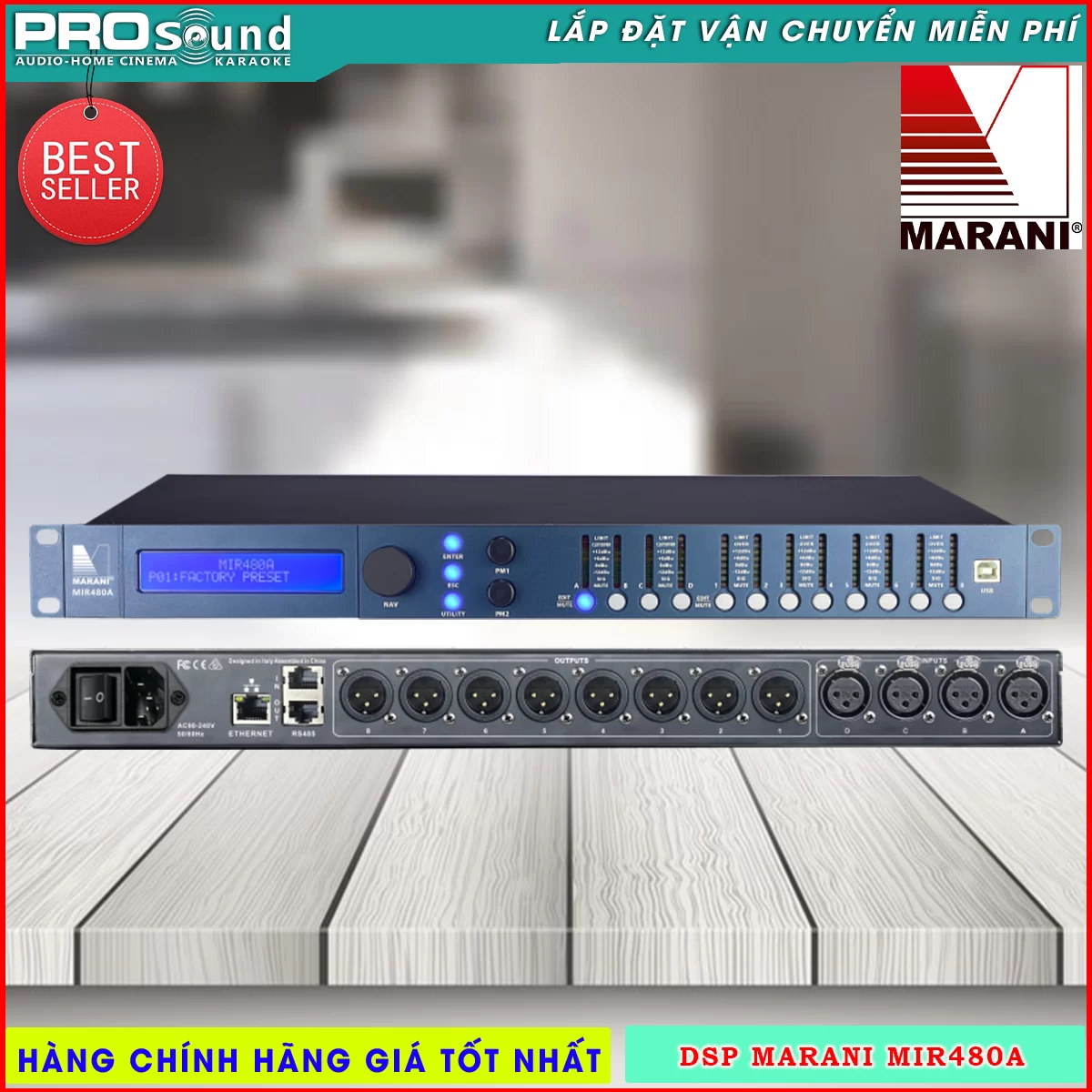

DSP Marani MIR480A

Giá Liên Hệ
  • Mã SP : MIR480A
  • :
  • Thương hiệu: Marani Pro Audio
  • Tình trạng : Còn hàng
  • Bảo hành : 24 Tháng
pro sound khuyến mạipro sound khuyến mại
Khuyến mãi/Ưu đãi
hotdeal
Nhập Mã HotDeal giảm ngay 50000

Số lượng: Thanh toán: 0.00

Hoặc gọi ngay để đặt mua: 0777 891 991 | 077 789 1992 (8:00-20:00)
  • Vì Sao Bạn Nên Chọn Pro Sound ?

  • Chính hãng Hàng nhập khẩu chính hãng, giá tốt nhất VN
  • đại lý cấp 1 đại lý cấp 1 được ủy quyền từ các hãng
  • hỗ trợ kỹ thuật Hỗ trợ trọn đời với kỹ thuật kinh nghiệm lâu năm
  • số 1 việt nam Bảo hành, bảo trì sản phẩm nhanh số 1 Việt Nam
  • số 1 việt nam 1 đổi 1 trong 15 ngày nếu lỗi do NSX

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

MIR480A is a digital audio processor newly designed by Marani. It has extremely low noise floor, high dynamic range and powerful internal DSP to cover most of the usage scenarios. Whether in meeting rooms , theaters , touring performances, or even large-scale tours, you can use the A series processors. Advanced circuit design and original DSP algorithm are the core of pure and high-quality sound.
In the signal processing part of MIR480A, inside powerful MARANI DSP, DSP and AD/DA converters are running at 96KHz sampling rate, complete processing functions provide a complete speaker crossover solution.
From input gain/delay/noise gate/EQ/compression/FIR, tooutputgain/delay/polarity/frequency pision/FIR/EQ/compression/compression, there are up to 13 types of parametric equalizer (PEQ) The filter type can be selected. The output crossover filter has the classic Linkwitz-Riley /Bessel/Butterworth, and there are also NXF horntype filters and FIR filters with a slope of up to 120dB per octave. The newly added MIR linear phase frequency pider filter can make the phase of the crossover point easier to join and produce a lower delay. Everything we provide is for better sound.
Added DSP plug-in, providing 96kHz FIR filter/highorder signal generator/RTA real-time spectrum analyzer, etc.
The newly designed Hard Limiter (Hard Limiter) allows a constant rate limit on signals exceeding the threshold at any threshold to better protect the speaker unit.
Each input and output channel provides a maximum 512-tap FIR filter, which can be customized by third-partysoftwaretogeneratetheFIR convolution you need. It can be used for speaker presets to improve the phase response and control the directivity according to requirements.
The newly added MIR linear phase pider filter has the filter shape of the traditional IIR filter (Linkwitz-Riley 24+48/oct), but does not produce any phase shift, and the resulting delay is about 50% of the FIR filter.

Thông số kỹ thuật

Audio

Input impedance  20KΩ
Output impedance  100Ω
A/D dynamic range  118dB
D/A dynamic range  118dB
Maximum input level  +20dBu
Maximum output level  +18dBu
Total harmonic distortion  ≦0.003%(+4dBu 1kHz)
Frequency response  20Hz~40kHz
Crosstalk  ≦-95dB
SNR  ≧113dB (A weighting)
Noise floor   ≦-94dBu (A weighting)
Common Mode Rejection Ratio  60dB
Number of analog input channels   4
Number of analog output channels  8
Rs485 control port  2
Network control port  1

DSP Processing
Signal generator white noise/pink noise, level range: -30dBu~+10dBu
input & output gain -18 dB ~ +12 dB, step  0.1dB
Noise gate Threshold range: -80dBu~-45dBu
Attack time: 1ms~1000ms; Release time: 1ms~1000ms
Dynamic loudness filter  Gain range: 0dB-10dB Attack speed: fast/medium/slow
Parametric equalizer Input channels up to 31 optional types of PEQ
output channels up to 8 optional types of PEQ
Optional types include  Bell filter, 1st order high Shelf filter, 2nd order high Shelf filter Variable Q high Shelf filter, 1st order low Shelf filter, 2nd order low Shelf filter Variable Q low Shelf filter, 1st-order low-pass filter, 2nd-order low-pass filter Variable Q low pass filter, 1st order high pass filter, 2nd order high pass filter Variable Q high pass filter, band pass filter, notch filter 1st order allpass filter, 2nd order all-pass filter with variable Q value
The center frequency adjustable within the frequency range of 20Hz~20kHz with a step accuracy of 1Hz
Q value/bandwidth The Q value range of Bell filter is 0.4~128,
the step is 0.01 The range of the Q value of the Chevron/high-pass/low-pass filter is: 0.1~5.1,
and the step is 0.01 The value range of bandpass/notch filter Q is: 4~104, step is 1
Equalizer gain range -15dB~+15dB
IIR crossover filter Butterworth slope: 6/12/18/24/36/48dB per octave
Bessel slope: 12/24dB per octave
Linkwitz-Riley slope: 12/24/36/48dB per octave
NXF horn filter slope is 40/45/50/50/55/60/65/70/75dB per octave
MIR linear phase filter Linkwitz-Riley: 24/48dB per octave,NXF-40per octave
FIR crossover filter type; high pass/low pass/band pass/external import
Taps range: 256 ~ 512,slope range 21 ~ 120dB per octave
Time window type: Rect / Sinc / Keiser /Hanning / Hamming / Blackman /Blackman-Harris/ Blackman-Nuttal / Nuttal/Keiser -Bessel/Sine
RMS compressor Starting threshold range: -10dBu~ +20dBu;
Compression ratio range:2~32: 1;
Soft and hard knee: 0~100%
Attack time:0.1ms~1000ms; Release time: 10ms~15000ms
Gain compensation:Maximum 12dB
Peak limiter  Threshold range: -10dBu~ +20dBu
Attack time: 1ms~1000ms; Release time: 10ms~3000ms
Hard limiter Threshold range: -10dBu~ +18dBu
Delay                             The adjustable delay time of each input channel + output channel is 452ms,
Step accuracy 0.0104ms (10.4us)
FIR filter Each input channel and output channel can import FIR filter with 48kHz sampling rate and 512 taps

General
Preset 32
size 482x44x207mm 1RU
Net/Gross weight 3.0 Kg / 3.5 Kg
