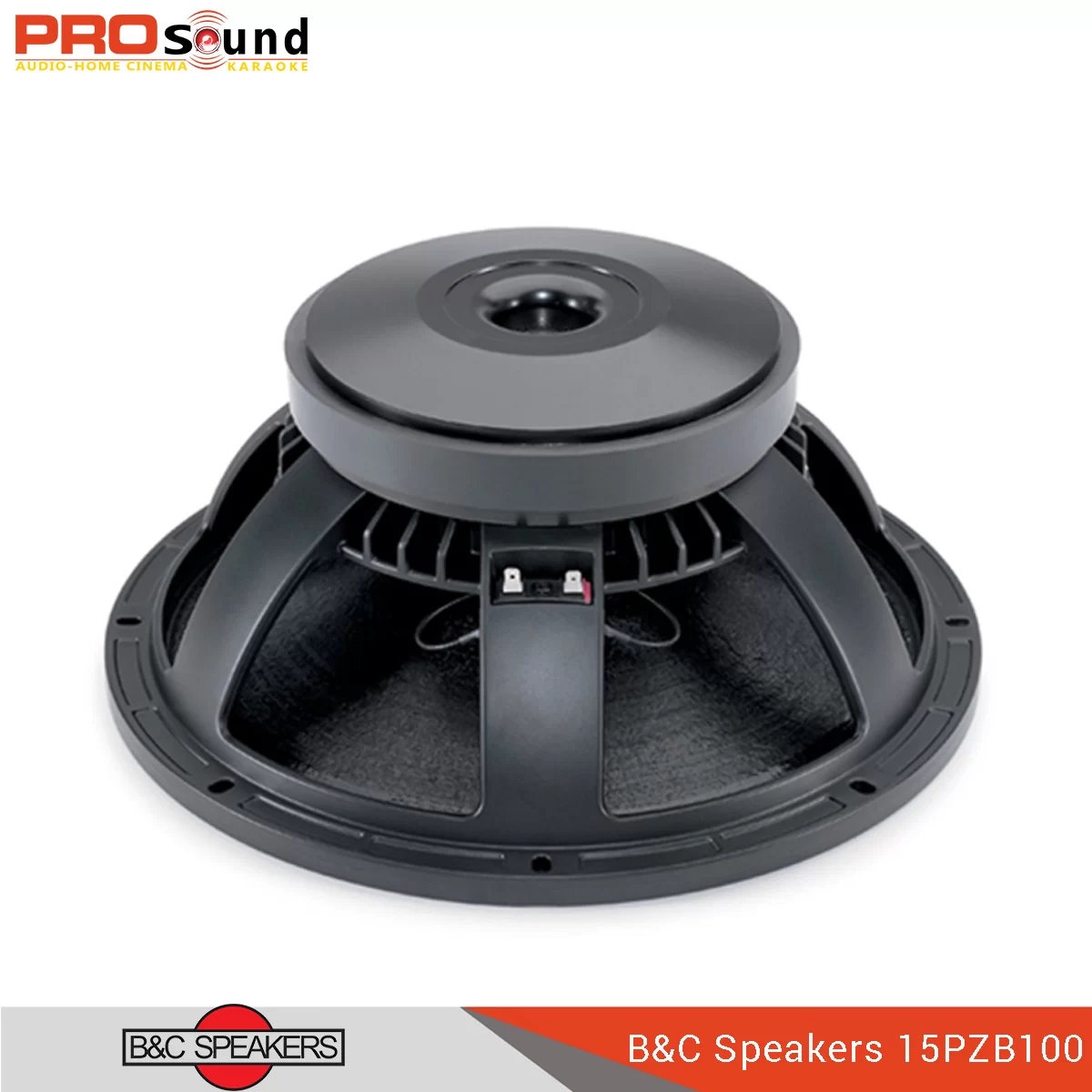

B&C Speaker 15PZB100

ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Features
1400 W continuous program power capacity
100 mm (4 in) copper voice coil
40- 2000 Hz response
97 dB sensitivity
Double silicone spider with optimized compliance

Specifications
Nominal Diameter: 380 mm (15.0 in)
Nominal Impedance: 8 Ω
Minimum Impedance: 6.4 Ω
Nominal Power Handling: 700 W
Continuous Power Handling: 1400 W
Sensitivity: 97.0 dB
Frequency Range: 40 - 2000 Hz
Voice Coil Diameter: 100 mm (4.0 in)
Winding Material: Copper
Former Material: Glass Fibre
Winding Depth: 21.0 mm (0.83 in)
Magnetic Gap Depth: 9.0 mm (0.35 in)
Flux Density: 1.15 T

Design
Surround Shape: Double Roll
Cone Shape: Exponential
Magnet Material: Ferrite
Spider: Double Silicone
Pole Design: Straight Pole
Woofer Cone Treatment: TWP Waterproof Both Sides
Recommended Enclosure: 105.0 dm3 (3.7 ft3)
Recommended Tuning: 39 Hz

Parameters
Resonance Frequency: 39 Hz
Re: 5.2 Ω
Qes: 0.3
Qms: 6.5
Qts: 0.29
Vas: 110.0 dm3 (3.8 ft3)
Sd: 855.0 cm2 (132.5 in2)
η₀: 2.1 %
Xmax: 8.0 mm
Xvar: 6.5 mm
Mms: 154.0 g
Bl: 25.8 Txm
Le: 2.0 mH
EBP: 130 Hz

Mounting and Shipping Info
Overall Diameter: 393 mm (15.5 in)
Bolt Circle Diameter: 374 mm (14.7 in)
Baffle Cutout Diameter: 354.0 mm (13.9 in)
Depth: 174 mm (6.85 in)
Flange and Gasket Thickness: 16 mm (0.63 in)
Air Volume Occupied by Driver: 5.2 dm3 (0.18 ft3)
Net Weight: 11.8 kg (26.0 lb)
Shipping Units: 1
Shipping Weight: 13.1 kg (28.8 lb)
Shipping Box: 425x425x224 mm (16.73x16.73x8.82 in)
