ĐẶC ĐIỂM NỔI BẬT SẢN PHẨM

Model Name	SQ-2404
GS1 (EAN) CODE	4.26032E+12
System Type	4-Channel Class H
Output Power	4 x 900W @ 4Ohm
all channels driven	4 x 600W @ 8Ohm
20Hz - 20 kHz, 0.1 % THD
Output Power	2 x 2400W @ 4Ohm
Bridge mode	2 x 1800W @ 8Ohm
	2 x 1200W @16Ohm
THD+N	≤0.5% @ 8Ω 1kHz
Slew Rate	>28V/μs
Frequency Response	10Hz - 20KHz / ±0.4dB
@1Watt, 8Ohm	10Hz - 20KHz / ±0.4dB
Damping Factor	>3000 @100Hz
(1kHz and below)	>3000 @100Hz
Signal to Noise Ratio	>100dB
20Hz -20 kHz	>100dB
Channel Separation	>70dB
Crosstalk@1kHz	>70dB
Voltage Gain	39dB (0,775V:69.5V)
Input Sensitivity	selectable 0.775V/1V/1.4V
Input Impedance	20k Ohm Balanced,
Input Impedance	10k Ohm Unbalanced
Front Control	Power switch, Gain control
Rear Control	Sensitivity Switch,
Rear Control	Mode Switch
LED Indicators	Signal, Clip, Protect,
LED Indicators	Power, Bridge
Input Connectors	XLR Active balanced
Input Connectors	pin1 gnd / pin 2+ / pin3-
Output Connectors	4 NL4 Sockets, 4xBinding Posts
Cooling	Low Noise Continuously
Cooling	Variable speed fan
Protection	Full short circuit, Open circuit,
	thermal, Ultrasonic,
	RF Protection.
	Stable Into reactive or
	Mismatched loads
Load Protection	On/Off muting, DC fault
Load Protection	power Supply shutdown
Operating Voltage	230V (+/- 10%), 50-60Hz
Operating Voltage	USA Version 110V (+/- 10%), 50-60Hz
Fuse	T-20A
Idle
Power Consumption
Max.
Power Consumption
Dimensions (h/w/d)	19“/2U 483mm×492mm×500mm
Net weight	25 kg

Thông tin sản phẩm

Công suất: 4 kênh 900W

Công nghệ: Class H

Kích thước: 2U (10cm)

Frequency Response: 10Hz - 20KHz / ±0.3dB

Output Power: 2 x 2400W @ 2Ohm; 2 x 1800W @ 4Ohm; 2 x 1200W @ 8Ohm

Voltage Gain: 42dB (0,775V:98V)

Input Impedance: 20k Ohm Balanced, 10k Ohm Unbalanced

Input Sensitivity: 0.775V/1V/1.4V

Dimensions (h/w/d): 19“/2U 483mm×486mm×90mm

Net weight: 27,5 kg

Power consumption (Standby) : 230V (+/- 10%), 50-60Hz USA Version 110V (+/- 10%), 50-60Hz

Xem chi tiết

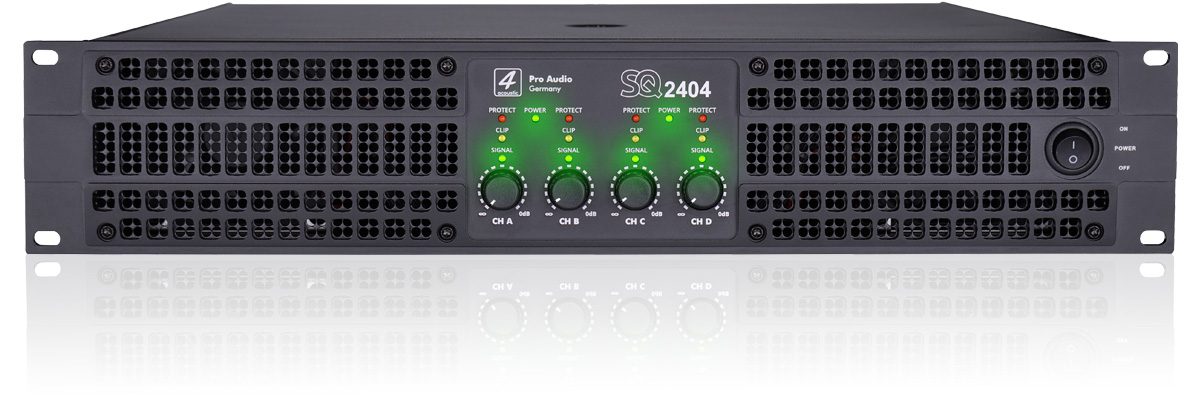

Amplifier 4 Kênh 4Acoustic SQ2404
